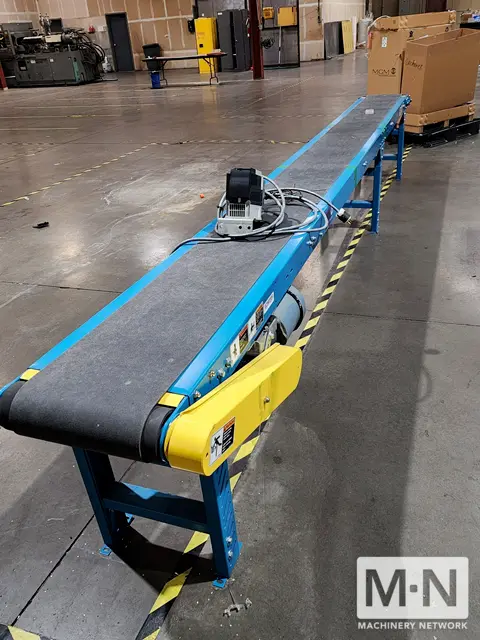

Ultimation USBS-12-16-VFD Horizontal Slider Belt Conveyor mfg 2022

Controller
Steel frame 4″ deep x 12 ga. powder coated steel
Paint color: Ultimation blue (other colors available with longer lead time)
End drive: located on discharge end of conveyor. Chain guard is on left hand side when standing at load end looking towards unload end
Motor: 1/2 HP 230/460V – 3 phase – 60 Hz totally enclosed fan cooled, energy efficient
Load capacity: Maximum load per linear foot is 75 pounds; do not exceed total load capacity shown in product load capacity chart
Belt: Black Trackmate 120 EMB (other styles available)
Drive pulley: 4″ diameter
Tail pulley: 4″ diameter with take up (4″ adjustment)
Belt speed: Constant Speed 65 FPM (Feet per Minute)
Legs/Floor supports included (27 3/4″ to 39 3/4″)
