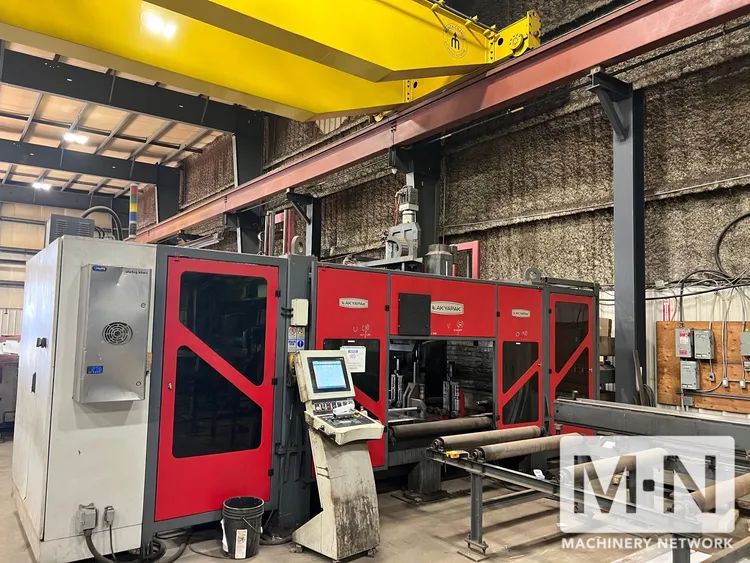

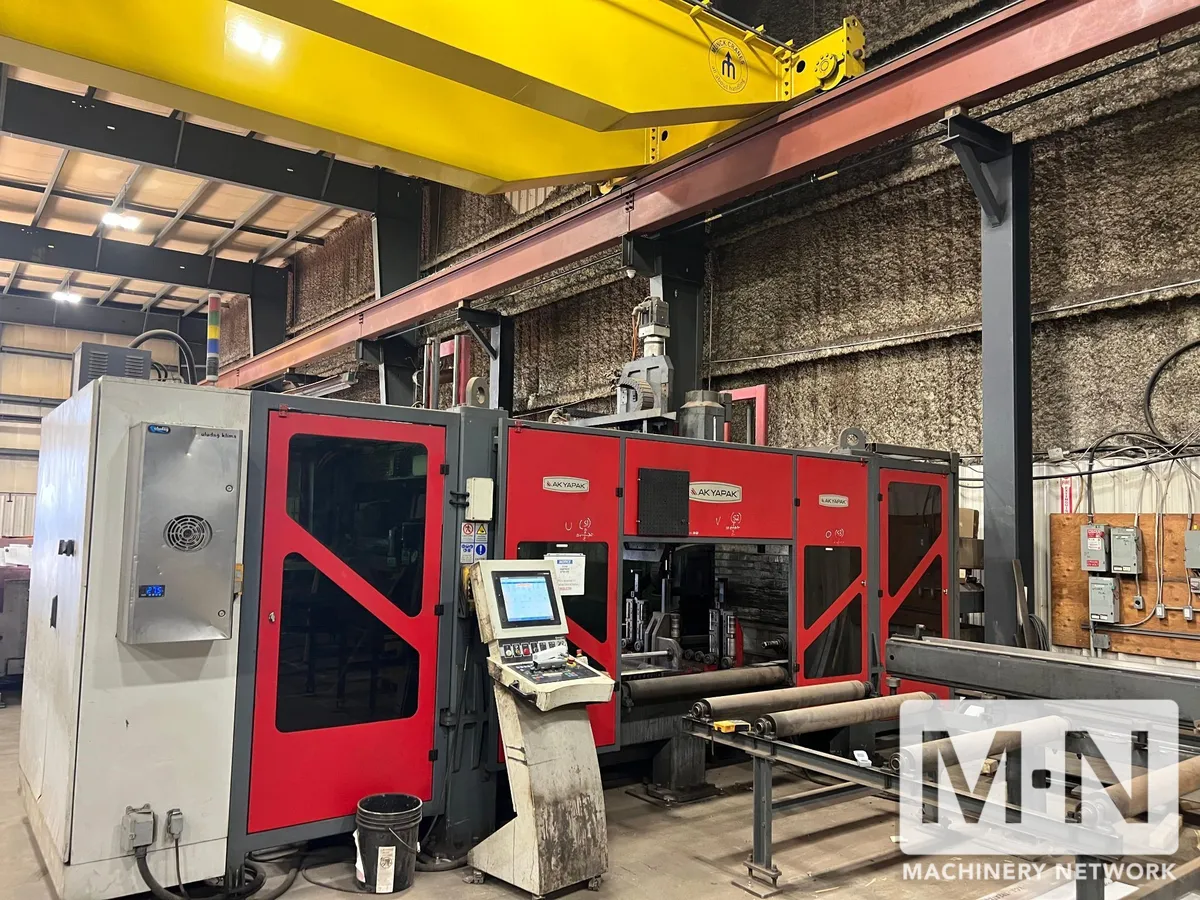

AKYAPAK ASM-S 190-20/6.0 BEAM DRILL SYSTEM
ConditionUsed
1 available
Controller: Mitsubishi
Operating Range for Section: Min. 8” X 3-1/8” Max. 50” X 20”
Operating Range for Length: Min. 6’ Max. 40’
Drilling Head (Spindle): 3
Drill Diameter: 3/8” - 1-1/2”
Carbide and U-drill: 1-1/2” - 2” (U-Drill Only)
Thread Tapping: M10 - M24
Tool Holder: BT40
Spindle Speed: 50 - 3000 RPM Stepless
Spindle Power: 30 HP (S1) 35 (S6)
Spindle Torque: 206 LBF.FT
Tool Changer: 4 for Each Spindle, Total 12
Weight Per Linear Meter: 750 KG/M
Vertical Spindle X,Y,Z: 1450 - 501 - 920
Horizontal Spindles X,Y,Z: 501 - 525 - 700
INCLUDES: Mitsubishi C70 Series CNC Monitor, AKYAPAK Band Saw Model AST 1200/500,80’ Drill Line Feed Roller Bed,80’ Saw Feed Roller Bed ,80’ Saw Discharge Roller Bed.
Specifications: 40” X 40’ Beam Drill Machine with Mitsubishi C70 Series CNC Monitor, AKYAPAK Band Saw Model AST 1200/500,80’ Drill Line Feed Roller Bed,80’ Saw Feed Roller Bed ,80’ Saw Discharge Roller Bed.
Specifications: 40” X 40’ Beam Drill Machine with Mitsubishi C70 Series CNC Monitor, AKYAPAK Band Saw Model AST 1200/500,80’ Drill Line Feed Roller Bed,80’ Saw Feed Roller Bed ,80’ Saw Discharge Roller Bed.
