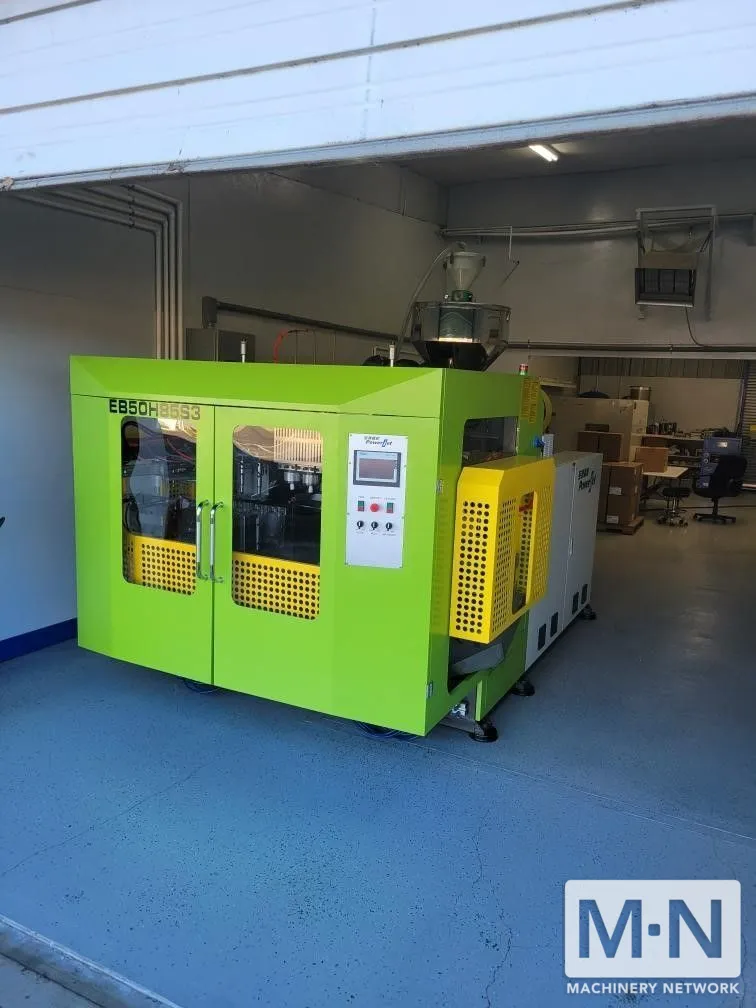

SINGLE HEAD OR TRIPLE HEAD POWERJET PLASTIC MACHINERY MODEL EB5085S3 CONTINUOUS EXTRUSION BLOW MOLDING MACHINE MFG 2022
ConditionUsed
1 available
SINGLE HEAD OR TRIPLE HEAD POWERJET PLASTIC MACHINERY MODEL EB5085S3 CONTINUOUS EXTRUSION BLOW MOLDING MACHINE MFG 2022
Extruder size and L/D: 85 mm, 78”/6”
- Extruder motor power: 40Hp
Control name: Siemens/Rexroth
-how many heads that it has and center distance of more than one:
(1) single die head and (1) 3 die head with 130 mm centers
Does it have view stripe capabilities ? NO
** Voltage: 380V, 3P, 109.3 Amp
- Clamping force: 140 KN
- Platen dimensions – 2x 16.5”x15.75”
- Platen opening- 20.25”
- Blow pin stroke: 5”
APPROX 240 HOURS
INCLUDES THE SINGLE AND THE TRIPLE HEAD 130 MM CENTER TO CENTER WITH PARISON CUTTERS
Molds included:
• 2x One gallon single cavity with deflashing system. HDPE. 38-410 Neck
• 2x 32oz buttress bottles. 3 cavity with deflashing system. HDPE. 38-430 Neck
• 2x Boston Round Bottle: 3 cavity with deflashing system. HDPE. 28-410 Neck
* each mold includes a built in handling system and deflasher
** THE LOADER IS NOT INCLUDED
