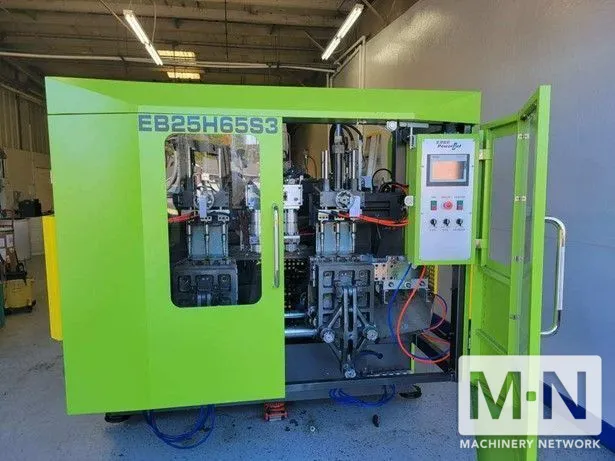

TRIPLE HEAD POWERJET PLASTIC MACHINERY MODEL EB25H65S3 CONTINUOUS EXTRUSION BLOW MOLDING MACHINE MFG 2022
ConditionUsed
1 available
TRIPLE HEAD POWERJET PLASTIC MACHINERY MODEL EB25H65S3 CONTINUOUS EXTRUSION BLOW MOLDING MACHINE MFG 2022
Extruder size and L/D: 65mm , 60”/4.5”
- Extruder motor power: 20Hp
Control name: Siemens/Rexroth
-how many heads that it has and center distance of more than one: Three die Head
101 MM CENTER DISTANCE
Does it have view stripe capabilities ? NO
- Voltage: 380V, 3P, 72.9 Amp
- Clamping force: 63KN
- Platen dimensions – 13”x12”
- Platen opening: 14”
- Blow pin stroke: 4”
Maximum machine output: 18 bottles/ minute.
ONLY APPROX 332 HOURS
Molds included:
• 2x Cosmo Round 2 oz, 3 Cavity with deflashing system. HDPE. 24-410 Neck
• 2x Cosmo round 8oz, 3 Cavity with deflashing system. HDPE. 24-410 Neck
• 2x Cosmo round 16oz, 3 Cavity with deflashing system. HDPE. 24-410 Neck
The molds have a built in Deflashers and material handling system that pushes the parts out of the machine
