2018 FLOW MACH 100 3120 WATERJET

specifications for FlowMach 100 3120

🔧 Flow Mach 100 3120 – Core Specifications
🧱 Table / Work Envelope
Table size: 10 ft × 6.6 ft (≈ 3.05 m × 2.0 m)
Typical configuration name: 3020 / 3120 class machine
⚙️ Motion & Accuracy
Rapid traverse speed: up to 400 IPM (10.16 m/min)
Linear positioning accuracy: ±0.003 in (±0.076 mm)
Repeatability: ±0.0025 in (±0.064 mm)
Linear straightness: ±0.005 in per ft
Acceleration: 0.05 g

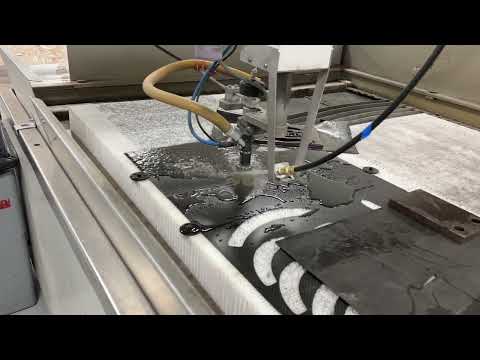

🪓 Cutting System
Max cutting pressure: 60,000 PSI (≈4,100 bar)
Cutting types:
Pure waterjet (soft materials)
Abrasive waterjet (metals, stone, composites)
🔋 Pump & Power
Pump size: 30 HP intensifier (HyPlex / similar)
Electrical: 480V / 3-phase / 60 Hz
📐 Z-Axis & Control
Z-axis travel: ~7–8 in (178–203 mm)
Control system: FlowMaster software
Fully programmable servo-driven Z-axis
🧰 Typical Features / Options

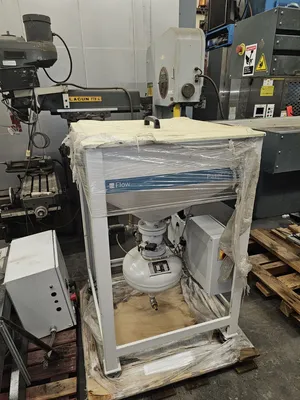

Abrasive hopper (e.g., ~900 lb capacity)
Roll-around operator console
Automatic lubrication system (series feature)
Robust steel construction for durability
🧠
