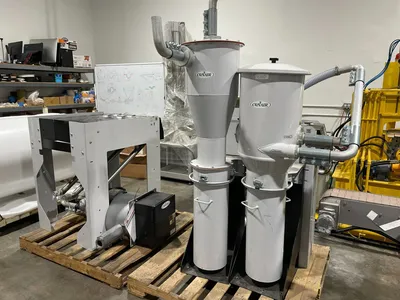

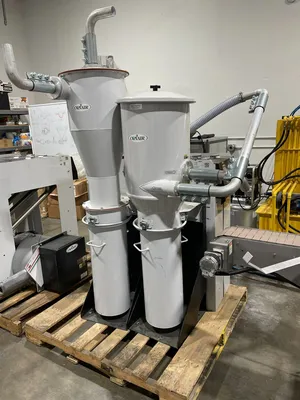

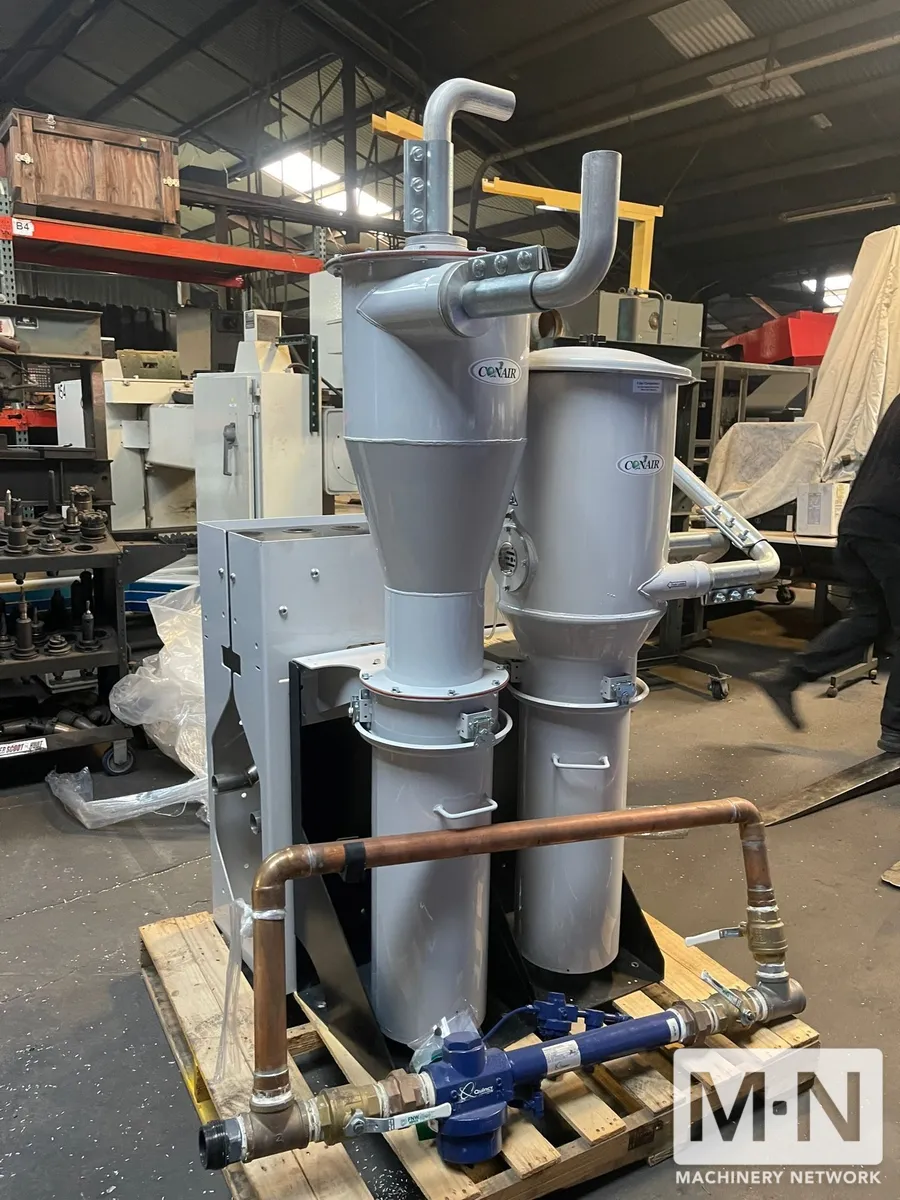

Conair PF-6 Vaccum Material Conveying System MFG 2021 Only used for testing

The vacuum material conveying system consists of:

Conair PF-6 Vaccum Material Conveying System
Conair 1006130102 Vacuum Filter
Conair DC 1 Vacuum System Dust
Conair RSS Resin Selection System
FLX-128 Plus Conveying Control Panel

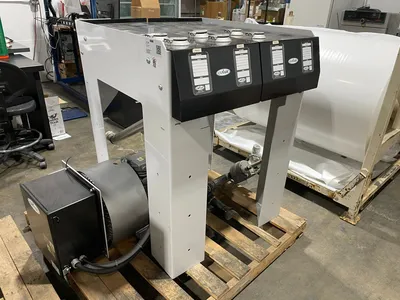

PF-6 - PowerFill Conveying System
The PowerFill is a pump, control, and filter. The PowerFill system can manage and support up to eight (8) vacuum receivers from its simple-to-understand 7-inch touchscreen control.

Using a peripheral pump that requires no oil or belts, plus an easy-to-clean
cartridge filter for dust collection, the PowerFill is a versatile, ready-to-use
vacuum source for your conveying needs. Simply wheel the PowerFill into
position and connect the unit to a three-phase power source. Vacuum
connections are made with flex hose. Snap together cable sets provide quick,
no-tools connections from the control to up to eight vacuum receivers.
• Pump, dust collector and control
• Compact, portable design with casters
• Minimal maintenance
• MODEL PF->Q319-PowerFill Conveying System
• Vacuum Inlet Size PFILS: 2" OD
• Size PFSIZ: 6
• Voltage and Frequency: 460/3/60Hz
• Number of Loaders: 8.000
• Control System: 24V DC
RSS - Resin Selection Station
Conair Resin Selection Stations (table top fantails) are ideally suited for central
drying and distribution systems that require conveying multiple materials to
multiple destinations.

The Resin Selection Station can be placed anywhere between the material
sources and destinations. The modular design provides a variety of
configurations for flexibility and expansion.

Push-fit connectors make changing materials fast and easy. Simply purge the
line to assure it is clean and primed for the next conveying cycle, then move
the connector to the desired material source line.
• Expandable to fit your needs
• Easy to use
• Durable construction

CYCLONE w/ 2.00" O.D. CONNECTOR & CANISTER
Carbon steel construction. Captures 98% of dust 105 microns and larger. No
power or compressed air required. Removable dust canister for quick and easy
cleaning.
