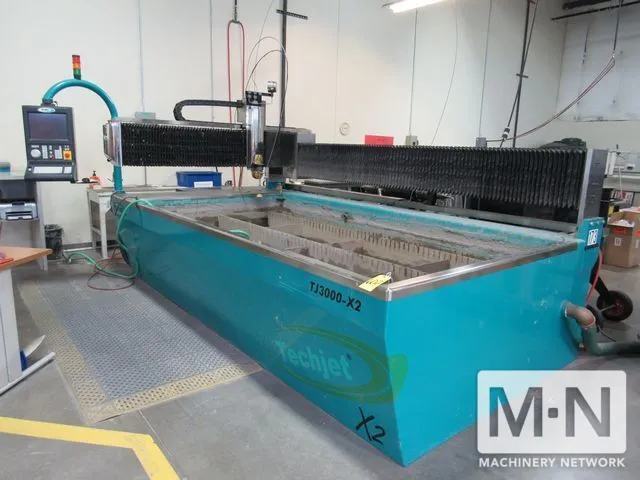

2010 TECHNI TJ300-X2 CNC WATERJET
ConditionUsed
1 available
Table size:........................ 5'3" x 10'6"
Cutting envelope:.................. 5' x 10'
Accuracy of motion:................ +/- 0.001"
Repeatability of motion:........... +/- 0.0005"
Maximum air speed:................. 1000 IPM
Maximum cutting speed:............. 1000 IPM, 60' per minute
Maximum cutting pressure:.......... 55,000 PSI
Intensifier:....................... dual-unit Quantum ESP55 electric servo pump
Horse Power:....................... 50
Maximum material thickness:........ 6"
Dimensions:........................ 14' x 7'6" x 6'6"
Weight (empty):.................... 6,000 lbs
Weight (with water):............... 18,000 lbs
Linear encoder feedback.
Submerged cutting for almost silent operation.
Fully enclosed bellows to completely protect the linear bearings and drive system.
Stainless steel apron to protect the machine when loading/unloading.
Precision stainless steel band drive providing smooth movement at rapid speeds with extreme accuracy.
Tech-SenseT to monitor the cutting head and pause the program.
Crash Sensing Break Away Head to protect your valuable investment.
High or Low pressure cutting and piercing
Quantum ESP 55 Intensifier
Techni Chiller
Hopper
Drain Tank/Cleaner
