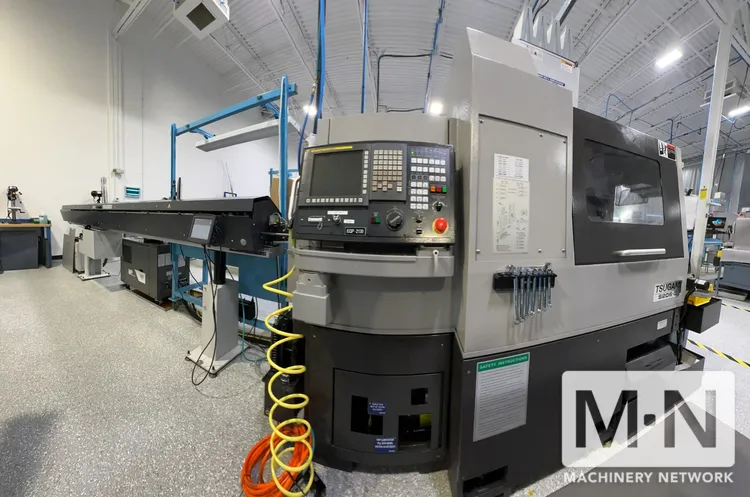

Tsugami S206-II CNC Swiss Lathe, 2020

Controlled Axes: X1, Z1, Y1, Y2, X2, Z2, C1, C2
Working Bar Stock Diameter: 0.11" - 0.75"
Machining Length: 8.26"
stationary guide bushing 9.84"
carrier type rotary guide bushing 3.1"
guide-bushingless 1.77"
Main Spindle Drilling Diameter: 0.5"
Main Spindle Tapping Diameter: M10
Deep Hole Drilling Diameter: 0.31"
Back Spindle Chucking Diameter: 0.75"
Back Spindle Drilling Diameter: 0.5"
Back Spindle Tapping Diameter M10
Cross Drilling Diameter: 0.31"
Cross Tapping Diameter: M6
Tool Spindle Slotting Cutter Diameter: 1.18"

Main Spindle Speed: 200 to 10,000 min-1
Back Spindle Speed: 200 to 10,000 min-1　＊1
Rotary Guide Bushing Speed (＊2): 200 to 10,000 min-1（ Direct-drive）
Tool Spindle Speed:
Cross tool spindle on front tool post: 200 to 10,000 min-1
Rear drive / Back drive: 200 to 8,000 min-1 *3
Total Tool Storage Capacity: 33/47
Live Tool Positions: 15/24
Tool Size: 0.47"
Rapid traverse rate: 1377 IPM

Machine Motors
Main spindle: 2.9/4.96 HP
Back spindle: 2.9/4.96 HP
Cross drill: 1.34 HP
Rear tool post: 1.34 HP
Back tool post: 1.34 HP

Machine Weight: 8,267 lbs
Machine Dimensions: 91" x 50" x 77"
