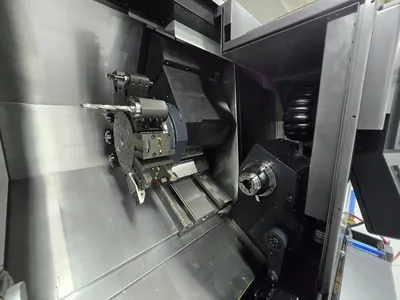

Doosan Puma 2600SYII CNC Lathe, 2022 - Very Low Hours!

Doosan Puma 2600SYII CNC Lathe, 2022 - Very Low Hours!

Sell Your DOOSAN PUMA 2600SYII
+ 1 (818) 465-6700
info@machinerynetwork.com
ConditionUsed
1 available
Sell Your DOOSAN PUMA 2600SYII

Overview

Type:
CNC Lathes
Manufacturer:
DOOSAN
Model:
PUMA 2600SYII
Year:
2022
Stock #:
51351
Status:
For Sale
Swing30.7"779.78 mm
Max. Turning Length29.9"759.46 mm
Max. Turning Diameter14.8"375.92 mm
X-Axis10.2"259.08 mm
Y-Axis4.1" ± 2.1″4.1" ± 2.1″
Z-Axis32.7"830.58 mm
B-Axis32.7″32.7″
Rapid Traverse X-Axis1181 ipm
Rapid Traverse Y-Axis394 ipm
Rapid Traverse Z-Axis1181 ipm
Chuck Size10"254 mm
Bar Capacity3.2"81.28 mm
Spindle Bore2 in
Power30 hp22.4 kW
Max RPM4,000 RPM4,000 RPM
Turret Stations1212
Live ToolingYesYes
Live Milling Power10 hp
Live Milling Max RPM5000 rpm5,000 RPM
Sub SpindleYesYes
Sub Spindle Power20 hp
Sub Spindle Max RPM6000 rpm6,000 RPM
Sub Spindle Chuck8 in
Dimensions142″ x 75″ x 85″H142″ x 75″ x 85″H
Weight14,400 Lbs14,400 Lbs

Fanuc 0i-PLus CNC Control
Turbo LNS Chip Conveyor
460 PSI High Pressure Coolant Unit
Automatic Tool PreSetter
Mist Fit MF 550 Mist Collector
8 Live Tools
Parts Catcher
Parts Conveyor
Bar Feeder Interface
3-Jaw Chucks Main/Sub
Royal Collet Chucks Main and Sub Spindle, Tooling Package, SamChully
Misc Collets
Misc OD & ID Tool Holders
