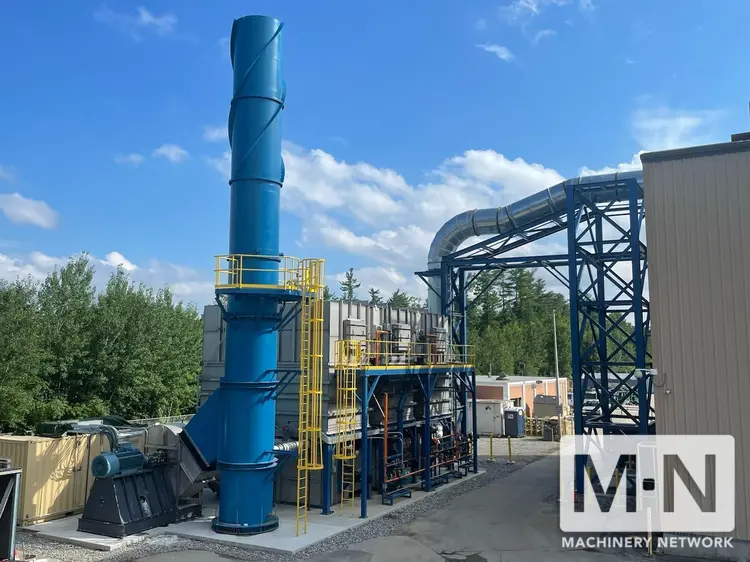

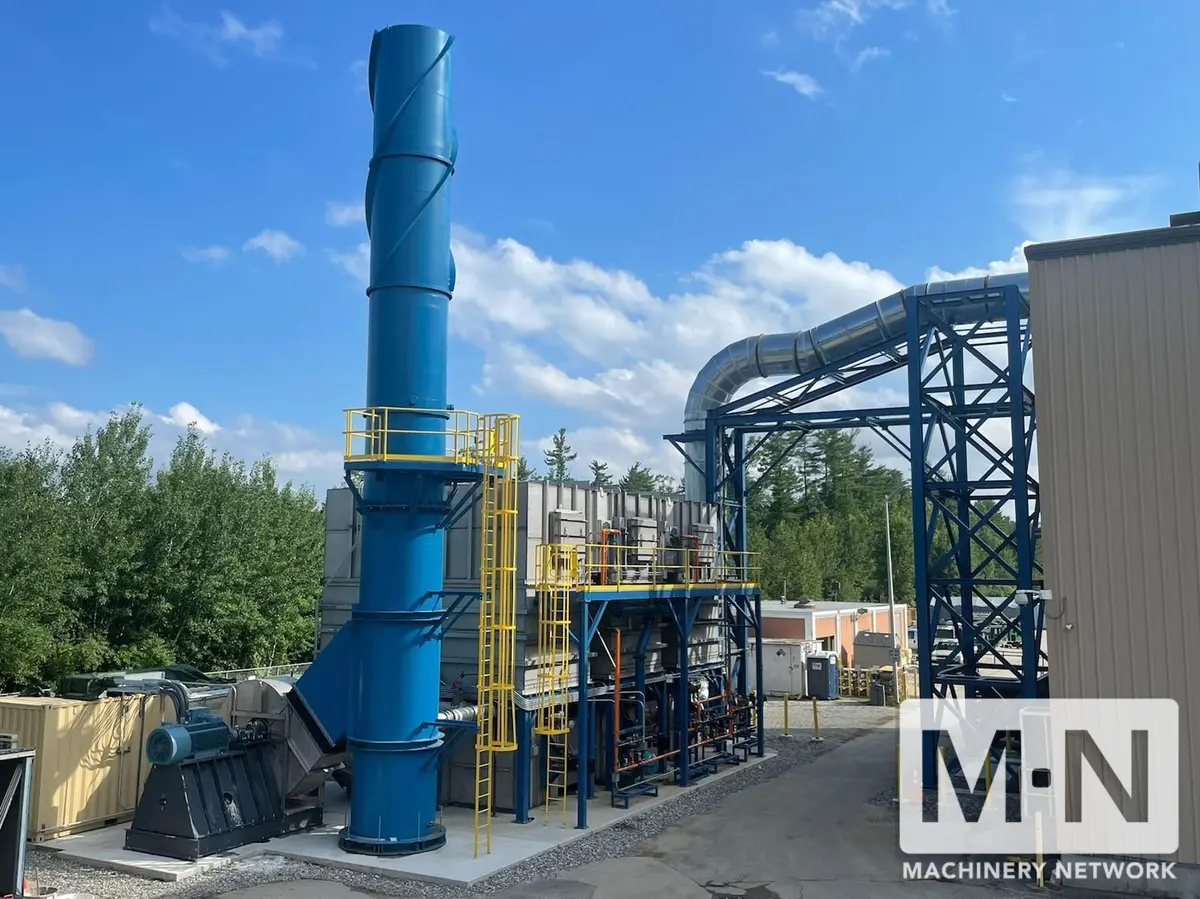

AIRCLEAR Thermgen Regenerative Thermal Oxidizer Processer

Process Type Coated Films Manufacturing
Customer Exhaust Volume to RTO 70,000 ACFM
Inlet Temperature 70-150ºF
Solvent Loading (Min./Max.) 0 - 150 LB/HR
Combustion Chamber Residence Time 1.0 sec. @ 1800°F
Net Thermal Efficiency (NTE) 95%
VOC Destruction & Removal Efficiency (DRE) 98% or greater
Electric Requirements 480 V / 3Ph / 60Hz
120V / 1Ph / 60Hz
Burner Capacity 15.0 MMBtu
Air Requirements 10 SCFM, 80psig.
clean and dry, -40F pressure dew point

Normal Process Flow at 100% of Design 70,000 SCFM
Maximum Process Flow at 110% of Design 77,000 SCFM
Maximum Process Flow Design 30,000 SCFM
Minimum Process Flow – 5:1% turndown 14,0000 SCFM
Maximum Process Inlet Temperature 0°F
Minimum Process Inlet Temperature 200°F
Process Stream Relative Humidity 0-100%
Combustion Chamber Operating Temperature 1832°F
Combustion Chamber Maximum Temperature 2200°F
RTO Outlet Temperature 250-350°F
RTO VOC Destruction Removal Efficiency 98% or greater
RTO PFC Destruction Removal Efficiency 90% or greater
RTO Particulate Loading .10 lbs. per hour or less
RTO Particulate Matter Removal Efficiency 99% or greater
Process Stream Maximum VOC Loading 10% LEL
Process Stream Minimum VOC Loading 0 % LEL
Heat Recovery Design Efficiency 95%
Combustion Chamber Retention Time @ 1800 F 1.0 seconds
Electrical Voltage Input 480 Volt / 3 phase / 60 hertz
Electrical Input 1200 amperage power supply (preliminary)
Fuel Gas Input Natural Gas
Fuel Natural Gas Volume Minimum 10,000 cubic feet per hour
Fuel Natural Gas Pressure
Minimum 3 psig
Maximum 15 psig
