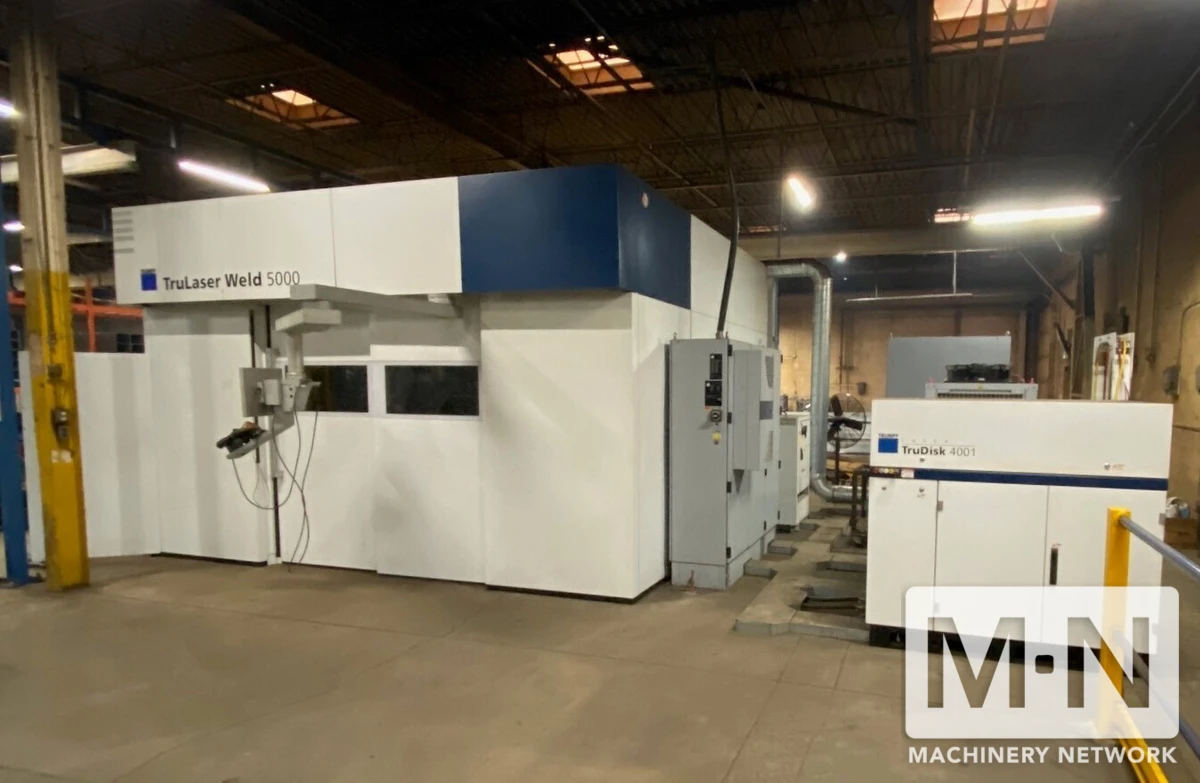

Trumpf TruLaser Weld 5000 Automatic Laser Welder, 2018 - Like New
ConditionUsed
1 available
2018 Trumpf TruLaser Weld 5000, lightly used, 4000W laser capacity, KUKA KR30 HA Robot, advanced features. Ideal for high precision work.
Laser Capacity 4000 Watt
Rotate & Tilt Positioner:
Maximum Part Width 78.75"
Maximum Part Height 27.55"
Maximum Part Depth 39.37"
Maximum Loading 880 LBS.
Rotary Table:
Maximum Work Area 63" X 31.5" X 47.2"
Maximum Loading (Per Side) 550 LBS.
Rotational Changer:
Maximum Work Area 78" X 39" X 43.3"
Maximum Loading (Per Side) 1,650 LBS.
Turnover Positioner:
Maximum Part Size 157" X 59" X 39"
Maximum Loading 2,200 LBS.
Robot:
Number of Axes 6
Repeatability +/-.0019"
$1.1 million replacement cost
KUKA Robot KR30 HA (High Accuracy)
- Support Arm For Operating Panel
- Laser Light Cable
- Magnetic Coupling
- Axis Alignment
- Process Gas Argon
- Supply Port Access Gas
TruDisk 4000
Water-Air-Cooled Chiller
Kuka KR 30 HA (High Accuracy) Robot
Enclosure with Power Door
Vacuum Unit
FusionLine
Rotary Module for shield gas (programmable)
TeachLine
Automatic Rotary Changer
Demmeler Mouting Frame for Fixtures
