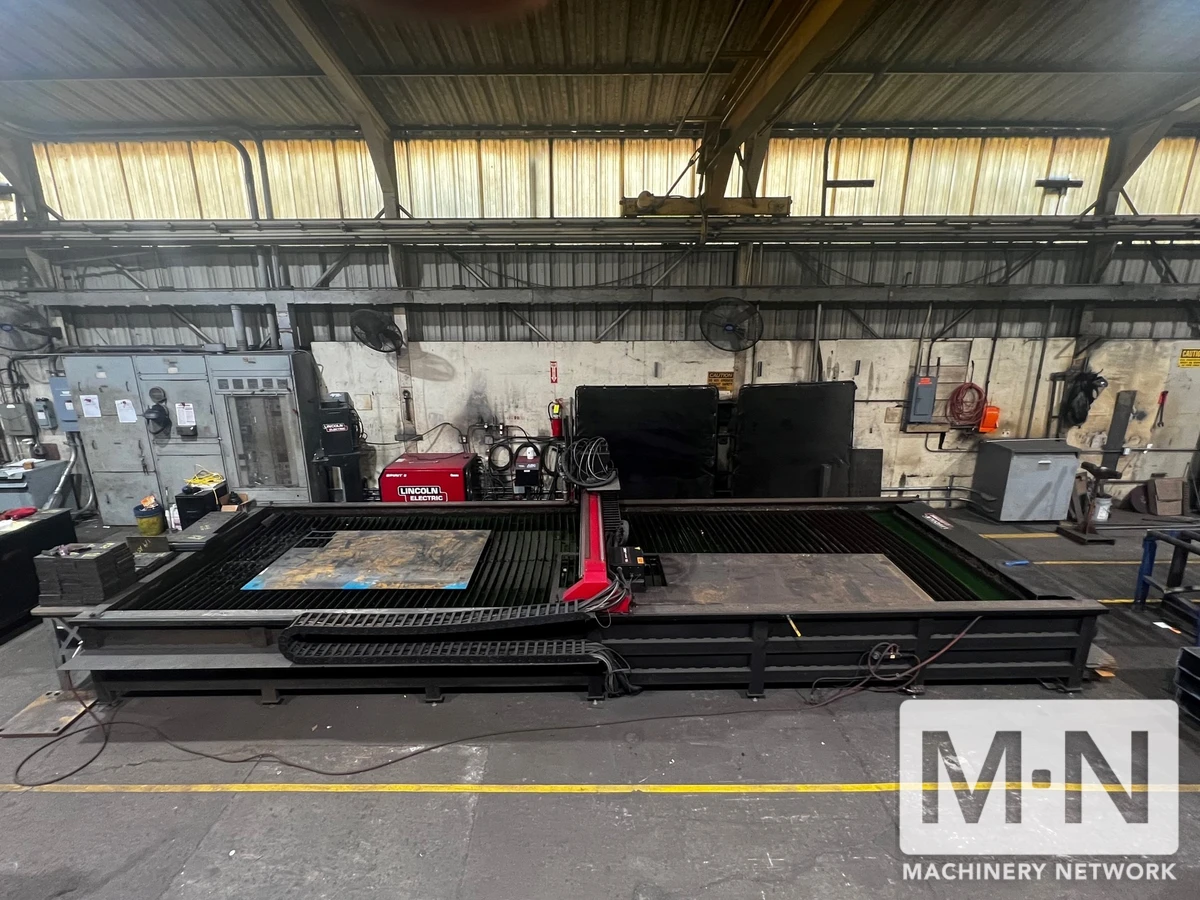

6' X 22' LINCOLN ELECTRIC TORCHMATE PLASMA CUTTER

Model Features
• DXF, DWG Direct Import
• Adjustable water height on water table
• Low backlash 5:1 gearboxes
Standard Equipment
• Water table, Gantry, and Arc Voltage Height Control
• Full cable carrier system
• Visual Machine Designer Touchscreen Interface
Construction
• Steel fabricated gantry with dual y-axis drive
• Precision x-axis linear guide—the ultimate in accuracy and durability
• Precision ground y-axis guide rails to within .001 tolerances, 63 Micro finish, custom made in the USA
Electronics/Motion System
• Two Y-axis 380 oz. in. stepper motors
• One X-axis 380 oz. in stepper motor
• 8 amp micro stepping drives
• Motion Controller
User Controls
• Burny PHANTOM II
Weight
• Approximately 4,739 lbs for 6’ x 22’ system with no water
Input Power
• Torchmate X machine requires 15 amp/ 110 volt AC service of 8amp/220v AC service
Input Air
• 8 SCFM @ 90 PSI, dry air filtered to minimum 5 micron
Cutting Area
• 6'x22'
Cutting Capacity
• 275 AMP

Drive System
• Rack and pinion X/Y-Axis 5:1 Reduction
• Ball Screw/Linear Stage Z-Axis
Traverse Speed
• Up to 572 ipm
Cut Speed
• Up to 572 ipm
Standard Software
• SIGMANEST
