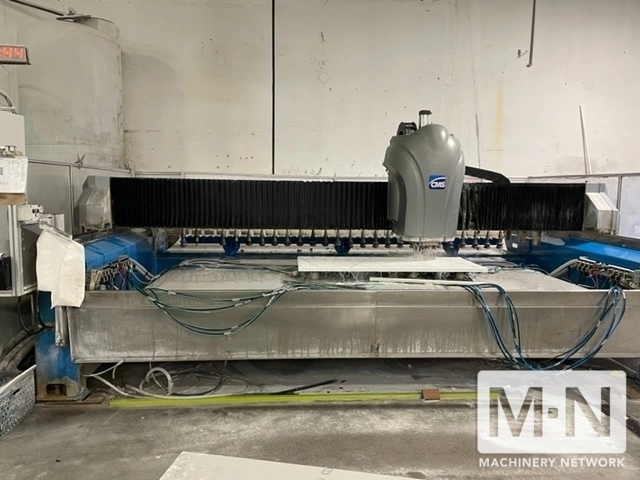

BREMBANA CONCEPT 2.10

Machine info: 18.1 HP (13.5kw) Electro spindle 15,000 max RPM
X-axis stroke 3760mm (148″)
Y-axis stroke 2080mm (82″)
Z-axis strke 330mm (13″)
Spindle replaced only 2 years ago
Monobloc Table – working area 3585mm x 1700mm (141″ x 67″)
26-position rear mounted automatic tool changer
26 ISO 40 tool Cones
reference stops and Large / Medium vacuum pods
Easy stone CAD/CAM software
DDX key for easystone
High pressure vacuum system controlled by a non pollutant liquid ring pump
Working Area: 3700 mm x 2500 mm / 145.66" x 98.42"
Foot Print: 6.4m x 4.7m x 2.4m / 21'L x 16'W x 8'H
Weight: 9000 kg / 19840 lbs
