SNK HGM-3500 Bridge-Type 5-axis CNC Machining Center [2013]

Sell Your SNK HGM-3500

+ 1 (818) 465-6700

info@machinerynetwork.com

ConditionUsed

Quantity

1 available

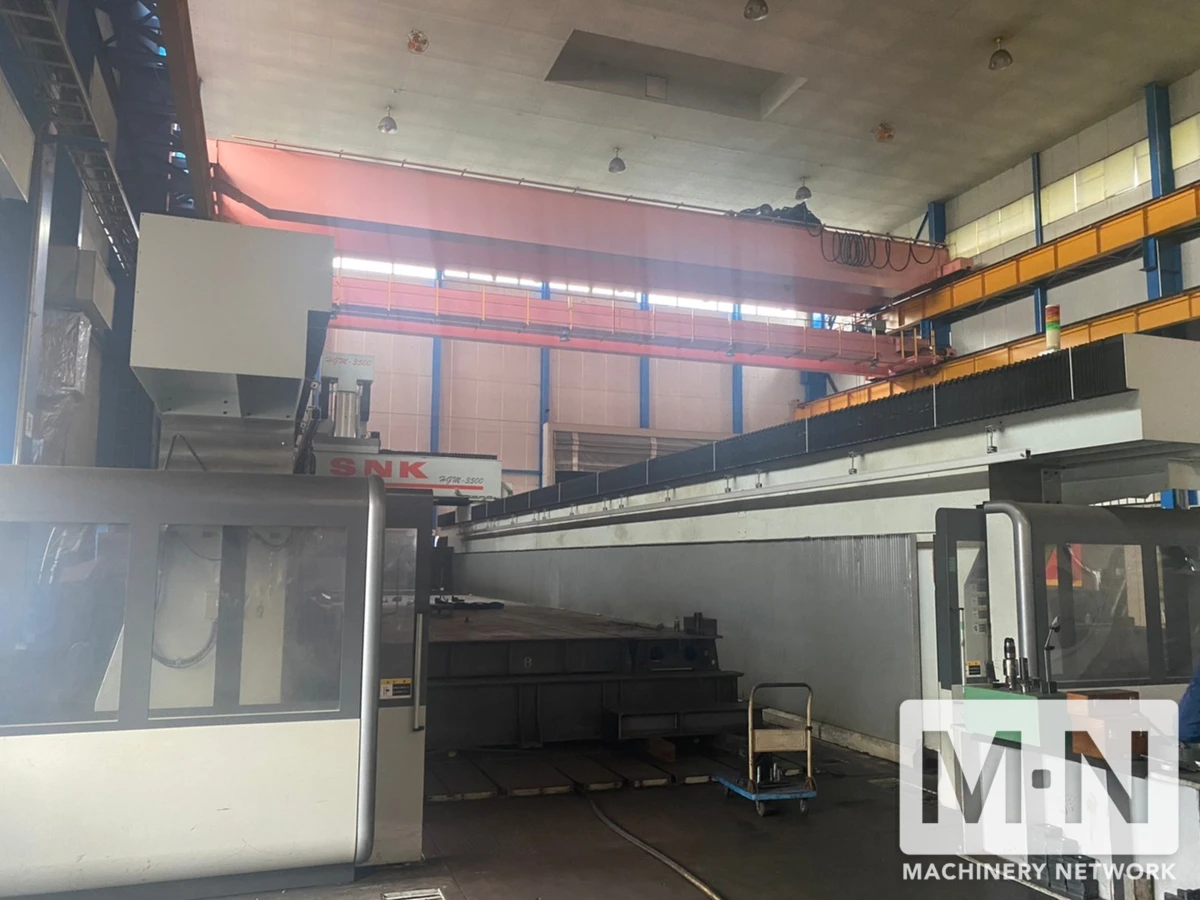

2013 SNK HGM-3500 Gantry Machining Centers (incld. Bridge & Double Column) | Machinery Network (1)

2013 SNK HGM-3500 Gantry Machining Centers (incld. Bridge & Double Column) | Machinery Network (2)

2013 SNK HGM-3500 Gantry Machining Centers (incld. Bridge & Double Column) | Machinery Network (3)

2013 SNK HGM-3500 Gantry Machining Centers (incld. Bridge & Double Column) | Machinery Network (4)

2013 SNK HGM-3500 Gantry Machining Centers (incld. Bridge & Double Column) | Machinery Network (5)

2013 SNK HGM-3500 Gantry Machining Centers (incld. Bridge & Double Column) | Machinery Network (6)

2013 SNK HGM-3500 Gantry Machining Centers (incld. Bridge & Double Column) | Machinery Network (7)

2013 SNK HGM-3500 Gantry Machining Centers (incld. Bridge & Double Column) | Machinery Network (8)

2013 SNK HGM-3500 Gantry Machining Centers (incld. Bridge & Double Column) | Machinery Network (9)

2013 SNK HGM-3500 Gantry Machining Centers (incld. Bridge & Double Column) | Machinery Network (10)

2013 SNK HGM-3500 Gantry Machining Centers (incld. Bridge & Double Column) | Machinery Network (11)

2013 SNK HGM-3500 Gantry Machining Centers (incld. Bridge & Double Column) | Machinery Network (12)

2013 SNK HGM-3500 Gantry Machining Centers (incld. Bridge & Double Column) | Machinery Network (13)

2013 SNK HGM-3500 Gantry Machining Centers (incld. Bridge & Double Column) | Machinery Network (14)

2013 SNK HGM-3500 Gantry Machining Centers (incld. Bridge & Double Column) | Machinery Network (15)

2013 SNK HGM-3500 Gantry Machining Centers (incld. Bridge & Double Column) | Machinery Network (16)

2013 SNK HGM-3500 Gantry Machining Centers (incld. Bridge & Double Column) | Machinery Network (17)

2013 SNK HGM-3500 Gantry Machining Centers (incld. Bridge & Double Column) | Machinery Network (18)

2013 SNK HGM-3500 Gantry Machining Centers (incld. Bridge & Double Column) | Machinery Network (19)

2013 SNK HGM-3500 Gantry Machining Centers (incld. Bridge & Double Column) | Machinery Network (20)

2013 SNK HGM-3500 Gantry Machining Centers (incld. Bridge & Double Column) | Machinery Network

Sell Your SNK HGM-3500

Overview

Type:

Gantry Machining Centers (incld. Bridge & Double Column)

Manufacturer:

Model:

HGM-3500

Condition:

Good

Year:

2013

Stock #:

40480

Status:

For Sale

Description

Fanuc 31i B5, 256"X 138"Y 39"Z travels, 100hp, 10k rpm, HSK-63A, has been used in the machining of airplane parts, 3469 hours

Specifications

ImperialMetric

X Axis	255.9"	6,499.9 mm
Y Axis	137.7"	3,497.6 mm
Z Axis	39.3"	998.22 mm
C-axis	+/- 220	+/- 220
B-axis	+/- 120 degrees Continuous	+/- 120 degrees Continuous
Distance between Columns	192.9"	4,899.7 mm
Spindle Motor	100 hp	74.6 kW
Spindle Speed	10,000 RPM	10,000 RPM
Taper	HSK 63	HSK 63
Control	CNC (Fanuc 31i B5)	CNC (Fanuc 31i B5)

Equipped With

Fanuc 31i B5 5-axis CNC Control
HSK-63
3469 Hours
