Park City, Kansas, United States
Stock #: 40411
Excellent
Siemens 840D, 24K RPM, 108HP (3 Available)
Pre-Auction Offers Welcomed!

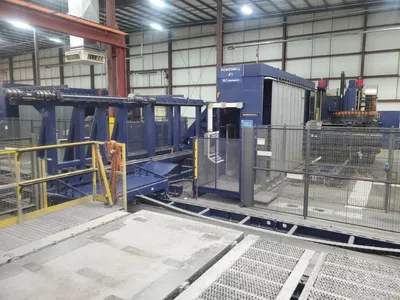

Ingersoll Powermill High Speed 5-Axis CNC Horizontal Machining Cell
3 Machines + 24 APC
New 2007-08
Machine specifications:
Travels - X Axis 160"
- Y Axis 71"
- Z Axis 39"
- A Axis +/-110 degrees
- C Axis +/-400 degrees
Pallet dimensions 160" x 60"
Max. spindle speed 24,000 RPM
Spindle motor 108 HP
Spindle torque 47 ft/lb
Spindle taper HSK-63A
Tool changer cap. 120 ATC
Equipped with:
24 Pallet shuttle system with transfer cart and pallet tip-up station
Siemens 840D CNC control
